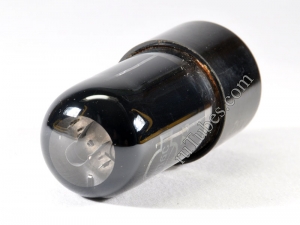

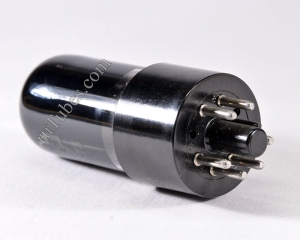

6P6S = 6V6 = 6AY5 = 587 tube. Tetrode. Reflector plant

Manufacturers: Reflector, Saratov, Russia
In Stock: 0
Price:
$3.99
Out of stock
Product description
Datasheets
Other Info

Description

Untitled Document

Reflector 6P6S tube is a direct replacement for 6V6 / 6AY5 / 587. Soviets cloned these several decades ago. The tubes are NOS (New Old Stock), rather vintage but in an excellent electric condition.

General characteristics:

Filament voltage, Volt: 6.3
Anode voltage, Volt: 250
1st grid voltage, Volt: -12.5
2nd grid voltage, Volt: 250
Filament (heater) current, mA: 475±40
Anode current, mA: 46±13
2nd grid current, mA: no more than 7.5
1st grid reverse current, mkA: 2
Mutual conductance, mA/V: 3 to 5.2
Output power, W: no less than 3.6
Internal resistance, k?: 5.2
Inter electrode capacitance, pF::
- input: 9.5±1.6
- output: 3.8 to 9.2
- transfer: no more than 0.9
Operation time, h: over 2000

Limited operating values:

Filament voltage, V: 5,7-6.9
Anode voltage, V: 350
2nd grid voltage, V: 310
Cathode - heater voltage, V: 180
Anode dissipation, W: 13.2
2nd grid dissipation, W: 2.2
Resistance in 1st grid circuit, kOm: 500


Operating environmental conditions :

Acceleration of vibration loads, g: 2.5
- by frequencies, Hz: 50
Ambient temperature, °C: -60 to +70
Relative humidity at up to 40°C, %: 98

Manufacturers: Reflector plant
